Intec ColorCut FB790-T B2+ Digital Die Flatbed Cutter and Tangential Crease, Cut and Perf
Cut and crease in one action with high force tools!
Unique in the market - nothing else can touch it for price per feature!
The NEW cutting edge FB790-T B2+ digital flatbed cutter delivers unmatched creasing and precision cutting for any die-cut application.
It’s sleek, space-efficient cutting table features a dual tool head boasting an impressive 2.5kg force Active Tangential Wheel creaser and 1kg passive contour blade tool delivering exceptional precision and consistency for finished products. Paired with a strong vacuum system and rapid operation, it excels in on-demand, medium to light production of two and three-dimensional creations.
This powerful and accurate device cuts through, kiss-cuts and creases nearly any printed material, from luxury packaging prototypes and sturdy protective cartons to durable point-of-sale components and kiss-cut adhesive labels and stickers for versatile applications.
Powered by our renowned ColorCut Pro software, the FB790-T introduces advanced capabilities that streamline creative workflows and production.
FB790-T Product information hub:
On-demand packaging and sheet card, prototype and medium to light production cutting system – also suitable for sheet labels.
- B2+ table takes SRA2 – or 2 x SRA3 and smaller
- No dies required – cut and crease any shape on demand
- Dual-tool head for same time cutting (1kgf) and creasing (2.5kgf)
- Blistering performance of up to 1,200mm/second
- Unparalleled accuracy using latest servo technology
- Cuts mixed jobs on table using QR coded auto job recognition to automatically retrieve associated cut files
- Cuts through up to 1,000 micron/800gsm paper/card, softboards and films to any shape and up to 3,000 micron boards with the optional tangential blade tool*
- Kiss-cuts perfect sheet labels of any shape
- CCD Video Camera driven to accurately follow vector cut/crease lines drawn in Adobe® Illustrator® & CorelDRAW®
- Vacuum suction media hold down table for even the smallest of items
- Effective cutting area 545 x 730mm
- Cut mixed job sheets for increased productivity on the bed, at the same time!
- Complete with dedicated ColorCut Pro cutting & creasing software, with Adobe® Illustrator® or CorelDRAW® plugins
*Creasing not available when optional tangential cut knife tool or perforation wheel tool is fitted.
With the second largest cutting table in the ColorCut range, the FB790-T handles sheets up to B2+ (580mm x 800mm), with a maximum effective contour cutting area of up to 545 x 730mm, ideal for cutting larger B2 sheets from inkjet or printing press applications.
The FB790-T is dual tool tangential flatbed digital die cutter includes a passive contour/drag cut knife and active tangential creasing wheel, providing 66% more creasing power at 2.5kg (2,500gf), so a wider spectrum of materials can be finished, including B2 folders & larger sheets, opening up new possibilities through its ground breaking design. The cutter also has the advantage of switching out the Tangential creasing wheel for a Tangential Knife or Perforation Wheel tool to allow for thicker board cutting up to 3,000 micron (3mm) thick materials.
Users also benefit from the very latest in advanced high-speed servo motors for accurate, fast and productive cutting. The flatbed cutter also comes with the upgraded registration system, making it great for multiple sheet cutting; the Vision3 CCD camera will auto find the position of each sheet. Its powerful 750w fan delivers maximum sheet suction ensuring 2 x SRA3 sheets can be comfortably placed next to each other.
General specification details for ColorCut FB790-T – see brochure for complete specification table.
Cut area:
Format/size: B2+ (2 x SRA3)
Maximum media area: 580mm x 800mm
Effective contour cutting area: 545mm x 730mm
Stand: Included
Media hold-down method: 750W vacuum suction
Acoustic Muffler / Silencer: Included
Cutting control:
Cutting carriage: Dual tool cutting carriage, 2 independently operated tool positions
Tool 1 (Tangential Crease, Cut and Perf): Up to 2,500gf (2.5Kg). *Creasing not available when optional tangential cut knife tool or perforation wheel tool is fitted.
Tool 2 (passive drag knife): Cut – up to 1,000gf (1Kg)
Max cutting depth: Paper/card up to 800micron, Max. depth 1,000 micron (low density substrate i.e. rice paper / soft board).
*3,000 micron when optional tangential cut knife tool is fitted.
Max speed: Fast Mode: 1,200mm/s. Standard Mode: 960mm/s. High Definition: 750mm/s.
Typical cut accuracy: +/- 125 μ
Mountable tools:
Tool position 1: Tangential wheel creasing tool, supplied with 0.28mm (narrow wheel). Optional wheels available: Medium (0.55mm), Wide (0.95mm). Tangential knife (5mm). Perforation Wheel (1.68mm pitch)
Tool position 2: Contour (drag) blade holder & pen tool for calibration
Software connectivity
ColorCut Pro – Production Studio 5: Windows 10/11 Pro x64 bit, 8 GB of RAM. Recommended Resolution: 1280×960 or higher. 1 x USB or 1 x Ethernet.
Registration control:
Registration system: Advanced 9th generation ARMS (Automatic Registration Mark System), Uses hi-res Vision 3 CCD camera system to read QR codes for instant job retrieval, also accurately reads registration marks, corrects linear, scale, skew and rotational/angular positional differences adapting the the cut file as required.
General
Weight:
84.4kg (186lbs) unpacked. (vacuum fan: 24.2kg (53.3lbs))
170kg (374lbs) packed including fan
Max’ dimensions:
Table dimensions (unpacked)
L 970mm (381/4″) x W 1080mm (42.5″) x H 1067mm (42″)
Fan dimensions
L 320mm (12.5″) x W 615mm (24″) x H 410mm (16″)
Dimensions (crated)
L 1532 x W 1147 x H 605mm (includes vacuum fan)
PDF brochure download – COMING SOON
Watch FB780-T video
ColorCut Pro Production Studio 5
ColorCut Pro is a stand-alone application with a plugin, that can be installed on remote computers anywhere within the workflow environment, to perform contour cutting of paper card and synthetics. Intec supplies this with all ColorCut models to offer a complete turnkey solution.
For creatives the application plug in enables artworkers to generate QR coded cut files with associated job numbers, as an integral part of their design, for instant job recognition and file retrieval.
For print finishers the ColorCut Job Library enables users to retrieve previously prepared cut files into their workflow, without the need to launch Adobe® Illustrator® or CorelDRAW®. This is typically used in a production environment, remote from the design studio.
Coming soon…
High productivity
premium B2+ digital die cutter
ColorCut FB790-T – Fast, Powerful, and excellent value!
The premium Intec ColorCut FB790-T B2+ Digital Die Cutter is the newest and second largest model in the acclaimed ColorCut flatbed series – setting fresh benchmarks for accruacy, engineering quality and value.
ColorCut T-Series: a new industry standard.
Designed in the UK, the T-series delivers high-end performance in an affordable, beautifully engineered package.
OVERVIEW

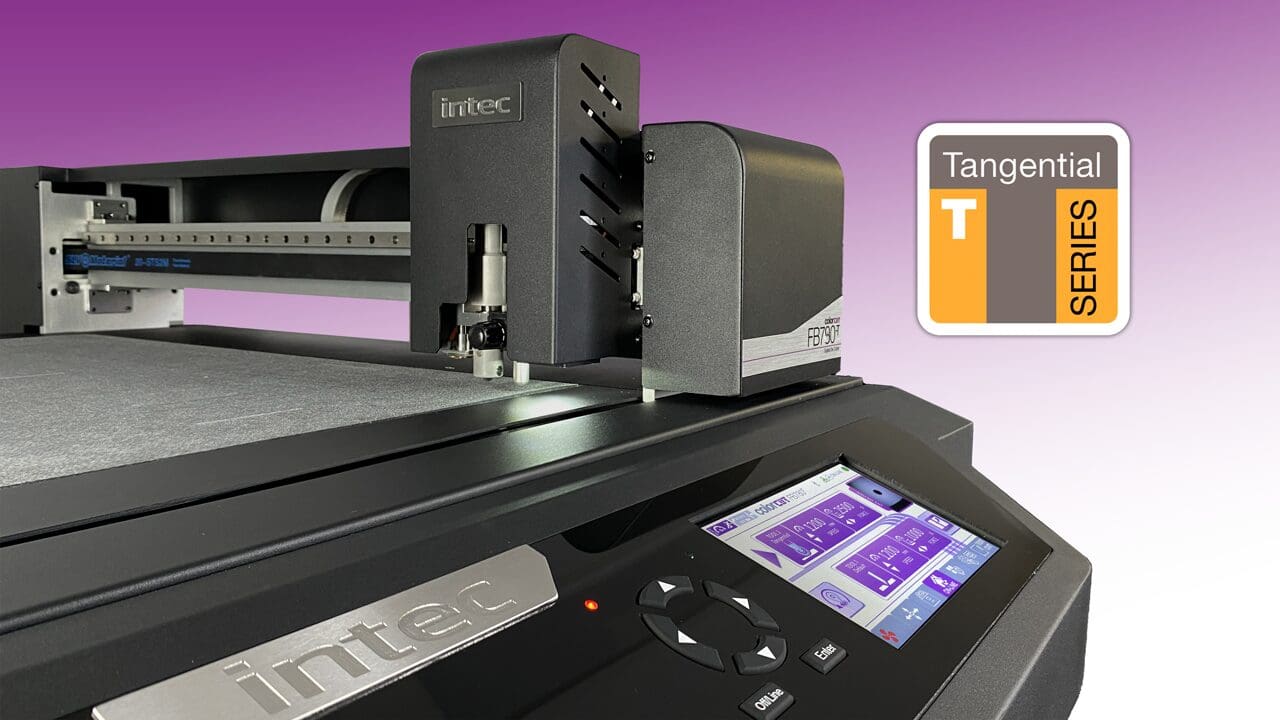

Constructed using premium components for superior reliability and performance, the FB790-T is enhanced by its striking control-panel design, featuring a modern 7″ immersive touchscreen interface for smooth, intuitive operation.
At its core is a B2+ medium- format flatbed cutting table equipped with a dual-tool head, housing both a passive contour/drag knife and an active tangential creasing wheel. This configuration allows two processes such as cutting and creasing to be completed in a single operation.
The combination of active and passive tools expands compatibility across media, enabling cutting, creasing, kiss-cutting and perforating with ease on a machine that remains impressively affordable for its specification.
There’s no steep learning curve. The included ColorCut Pro 5 software, supplied with the FB790-T, integrated directly with leading design applications such as Adobe® Illustrator® or CorelDRAW®. This means you can work within the design workflow you already know, without needing to learn new, complex systems.
Creating more possibilities
Working with a broader media choice and offers solutions for more end applications.
Incorporating an enhanced dual tool cutting head delivering up to 2,500gf pressure, opens up new possibilities through groundbreaking design. Users also benefit from the very latest in advanced high-speed servo motors for accurate, fast and productive cutting and creasing.
PRIMARY FEATURES
Dual tool head – includes Passive drag and Active tangential tools for a truly versatile media capability.
Highly productive – high speed and high pressure cut and crease, for prototyping of singles or multi-sheet 2/4 up rapid production for more jobs.
QR driven jobs – instantly & automatically finds cut files.
Acclaimed software – Easy to use industry acclaimed ColorCut Pro Production Studio 5 is included.
This fully featured software is extremely intuitive and requires no special skills to use. Design in the applications you are already familiar with, Adobe Illustrator or CorelDRAW, set the colour for cut, crease, perforation or kiss-cut path and ColorCut software will use those for processing.
Vacuum hold down – includes a powerful 750W vacuum system housed in an acoustic enclosure and included acoustic muffler, that keeps cut pieces firmly in place for fast and accurate processing, yet provides a quiet & comfortable operating environment, even in smaller studio environments.
Standalone production – the ‘NO WIRES’ file system enables you to load jobs from a USB drive, view and display jobs on the large touch screen, select them by name, or simply auto select the correct cut file and cut the job by pressing the SCAN button. One million job capacity.
Reverse Side – patented technology enables you to scan marks on the front of your sheet, flip the sheet over and cut and crease from the rear – offering more cutting and creasing options depending on media selection.
Advanced, Precise, Productive!
Intec ColorCut. A future-proof investment.
All ColorCut flatbed cutters are digital, enabling users to react instantly and on demand to any market opportunity. No need to wait for the making of costly conventional dies – users can start cutting immediately from suitable vector artwork.
ColorCut Pro software supplied as standard
This software reads vector artwork lines via the CCD camera, which retrieves the associated cut line from the Server’s Job Library. SmartMarks ensure accurate registration to the printed sheets. This software gives the user sophisticated control over the entire cutting and creasing process – even enabling cut line modifications to be made on the fly.
USB mode - Touch screen interface for ease of operation
Enhanced specification!
An advanced digital die cutter with an enhanced specification.
This is a high-specification B2 and larger cutting device with an effective cutting area of 545mm x 730mm. The cutting table accommodates up to one B2, SRA2 sheet or two SRA3 and is ideal for bigger jobs and medium production.
Cut and crease almost any printed promotional item – and also, to absolutely any shape! The cutter comes complete with purpose-built stand, 2 cutting mats, dual tool head which delivers class-leading forces up to 2.5kg with mountable tools for cutting, creasing and calibration, a selection of cutting blades, large immersive touch screen control panel, powerful 750W vacuum fan and silencer and software.
Intelligent job handling!
This premium FB790-T digital cutter is an ideal mid-size cutter for greater productivity. Featuring the Vision3 CCD camera that reads QR codes printed on the job, instantly retrieving cut files for every job, and also reads SmartMarks to ensure accurate registration to your printed sheets. Other benefits include a live view of the cutting heads progress, within the ColorCut Pro Production Studio user interface.
Supporting larger than B2 sheets, the cutting table can be maximised to accommodate multiple SRA3 and SRA4 sheets for continuous production, when using ‘Productivity Mode’ – where even mixed jobs can be read and cut in seamless perfection.
